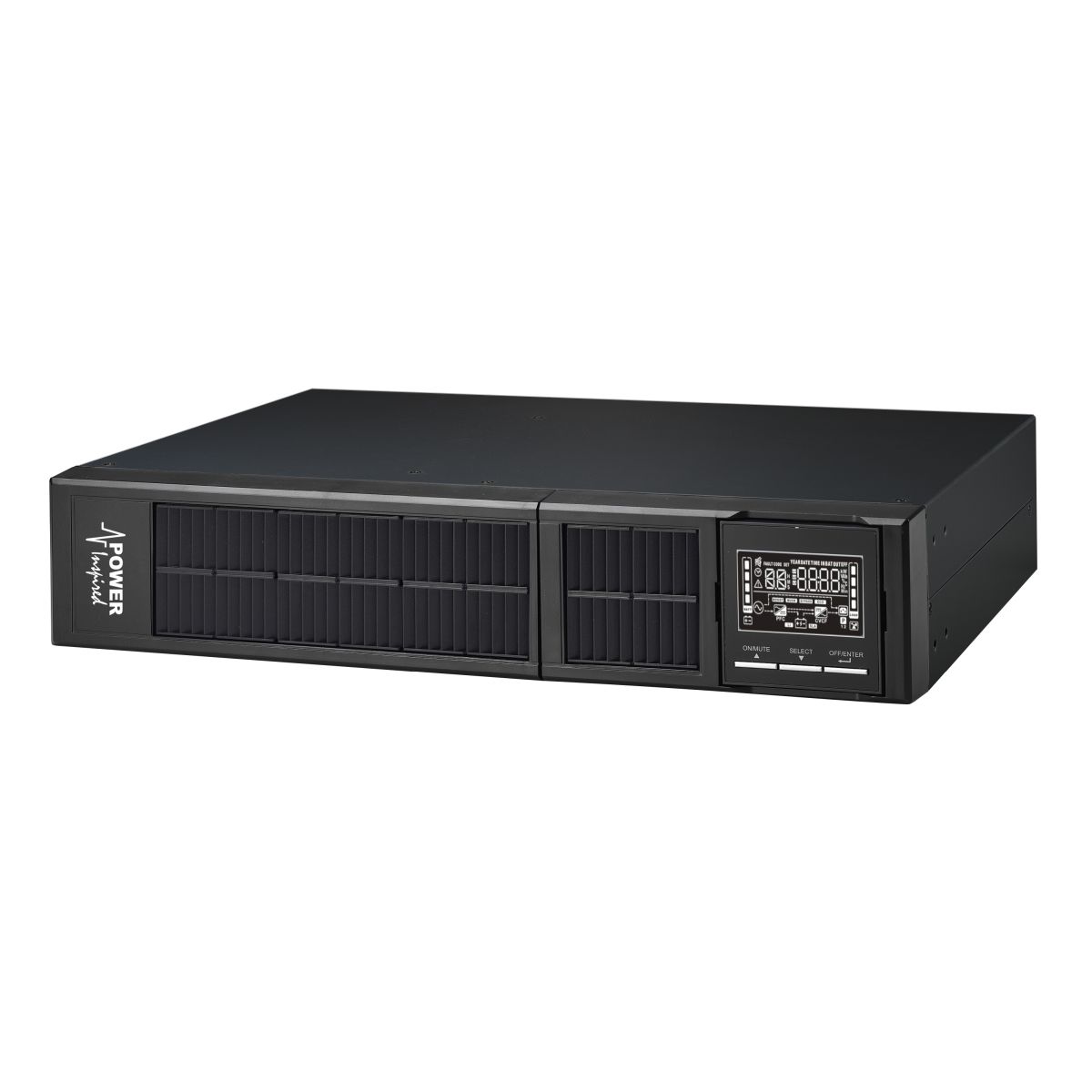

VFI1500RT+ 1500VA UPS

Original price was: £689.00.Current price is: £482.30. +VAT

VFI1500RT+ Online UPS. 1500VA/1350W 230V Nominal, Rack/Tower

SKU: VFI1500RT+
Category:
Tags: , , ,

Description

The VFI-RT+ Uninterruptible Power Systems are the benchmark in power protection performance. True online double conversion technology provides the highest degrees of power protection making the UPS suitable for a wide variety of mission critical equipment and infrastructure.

The VFI-RT+ can be mounted in a 19 rack installation and occupies only 2U of rackspace. Alternatively, the unit can be vertically mounted with the supplied support brackets.

The high output power factor of 0.9 removes the risk of overload on power factor corrected loads. The high efficiency of the VFI-RT+ reduces the need for additional cooling requirements, reducing operating costs and can be set into even higher efficiency ECO mode operation if required.

Additional battery packs can be added to extend runtime with the added benefit of adjustable current high capacity chargers, allowing large battery strings to be recharged in a timely fashion. These can be added at a later date as and when required. Internal UPS batteries and those of matching cabinets can be hot-swapped during the UPS life for ease of maintenance.

To improve reliability and protect against environmental contaminants such as moisture and dust, the PCB boards have been conformally coated.

Full HID Compliant USB interface for connection directly to operating system power management, with capability of SNMP / Relay for added communication options.

  • VFI (Online Double Conversion) Technology
  • Matching Battery Cabs
  • High Capacity Charger
  • Adjustable Charge Current
  • Adjustable Output Voltage
  • Frequency Conversion Mode
  • Intelligent Port for SNMP / Relay Options
  • Rack/Tower Format
  • Programmable Outlets
  • Hot Swap Battery
  • HID USB Interface
  • Conformally Coated PCB

This product can have additional battery cabs fitted to extend runtime.

0    1    2    3    4    5

Remember to add the required number of battery cabinets to your basket.

1350
45322|25033|16743|12346|9661|7868|6595|5649|4921|4346|3881|3498|3178|2906|2674|2473|2298|2143|2006|1885|1775|1677|1588|1507|1433|1366|1304|1246|1194|1145|1099|1057|1017|980|946|913|883|854|827|801|777|754|732|712|692|673|656|639|622|607|592|578|564|551|539|527|515|504|494|483|473|464|455|446|437|429|421|413|406|398|391|385|378|372|365|359|354|348|342|337|332|327|322|317|312|308|303|299|295|291|287|283|279|275|272|268|265|261|258|255|
181518|100257|67056|49449|38695|31515|26415|22626|19711|17406|15544|14010|12728|11642|10711|9906|9203|8585|8037|7549|7112|6718|6361|6037|5742|5471|5223|4994|4782|4586|4404|4234|4076|3928|3789|3659|3537|3422|3313|3211|3114|3022|2934|2852|2773|2698|2627|2559|2494|2432|2373|2316|2262|2209|2159|2111|2065|2021|1978|1937|1897|1859|1822|1787|1753|1719|1687|1656|1626|1597|1569|1542|1516|1490|1465|1441|1418|1395|1373|1351|1331|1310|1291|1271|1253|1234|1217|1199|1182|1166|1150|1134|1119|1104|1089|1075|1061|1048|1035|1022|
346032|191123|127831|94266|73766|60077|50356|43132|37575|33182|29631|26708|24264|22193|20420|18884|17545|16366|15322|14392|13558|12807|12127|11510|10946|10430|9956|9520|9116|8742|8395|8072|7770|7488|7224|6976|6743|6523|6316|6121|5936|5761|5595|5437|5287|5144|5008|4879|4755|4637|4524|4415|4312|4212|4117|4025|3937|3853|3771|3693|3618|3545|3475|3407|3341|3278|3217|3158|3101|3046|2992|2940|2890|2841|2794|2748|2703|2660|2618|2577|2537|2498|2461|2424|2388|2353|2320|2287|2254|2223|2193|2163|2134|2105|2077|2050|2024|1998|1973|1948|
529269|292329|195522|144183|112828|91891|77021|65972|57473|50754|45322|40851|37113|33946|31233|28885|26835|25033|23436|22013|20737|19589|18549|17605|16743|15954|15229|14561|13944|13372|12841|12346|11885|11454|11050|10670|10314|9978|9661|9362|9079|8811|8557|8316|8087|7868|7661|7462|7273|7092|6919|6754|6595|6443|6297|6157|6023|5893|5769|5649|5533|5422|5315|5211|5111|5015|4921|4831|4743|4659|4577|4497|4420|4346|4273|4203|4135|4069|4004|3942|3881|3821|3764|3708|3653|3600|3548|3498|3449|3401|3354|3308|3264|3220|3178|3136|3096|3056|3017|2980|
726986|401534|268563|198045|154977|126218|105794|90617|78943|69714|62254|56112|50977|46627|42900|39675|36860|34384|32191|30236|28484|26907|25479|24181|22997|21914|20918|20001|19153|18367|17638|16959|16325|15733|15177|14657|14167|13706|13271|12860|12471|12103|11754|11423|11108|10808|10522|10250|9990|9742|9504|9277|9059|8850|8650|8458|8273|8095|7924|7759|7601|7448|7300|7158|7021|6888|6760|6636|6515|6399|6287|6178|6072|5969|5870|5773|5680|5589|5500|5414|5330|5249|5170|5093|5018|4945|4874|4805|4737|4671|4607|4544|4483|4423|4365|4308|4252|4198|4145|4093|
936692|517360|346032|255173|199682|162627|136311|116757|101715|89823|80211|72298|65682|60077|55275|51120|47493|44303|41477|38958|36701|34668|32828|31157|29631|28235|26952|25770|24678|23666|22726|21851|21034|20271|19556|18884|18253|17659|17099|16570|16069|15595|15145|14718|14312|13926|13558|13207|12872|12552|12246|11953|11672|11403|11145|10897|10659|10430|10210|9998|9793|9596|9406|9223|9046|8875|8710|8550|8395|8245|8100|7960|7823|7691|7563|7439|7318|7201|7087|6976|6868|6763|6662|6562|6466|6372|6280|6191|6104|6019|5936|5855|5776|5699|5624|5551|5479|5409|5341|5274|
Nominal Voltage162-290V 50/60Hz
Maximum Wattage1350
Dimensions (WxDxH) mm438 x 410 x 88
Weight (kg)15.5

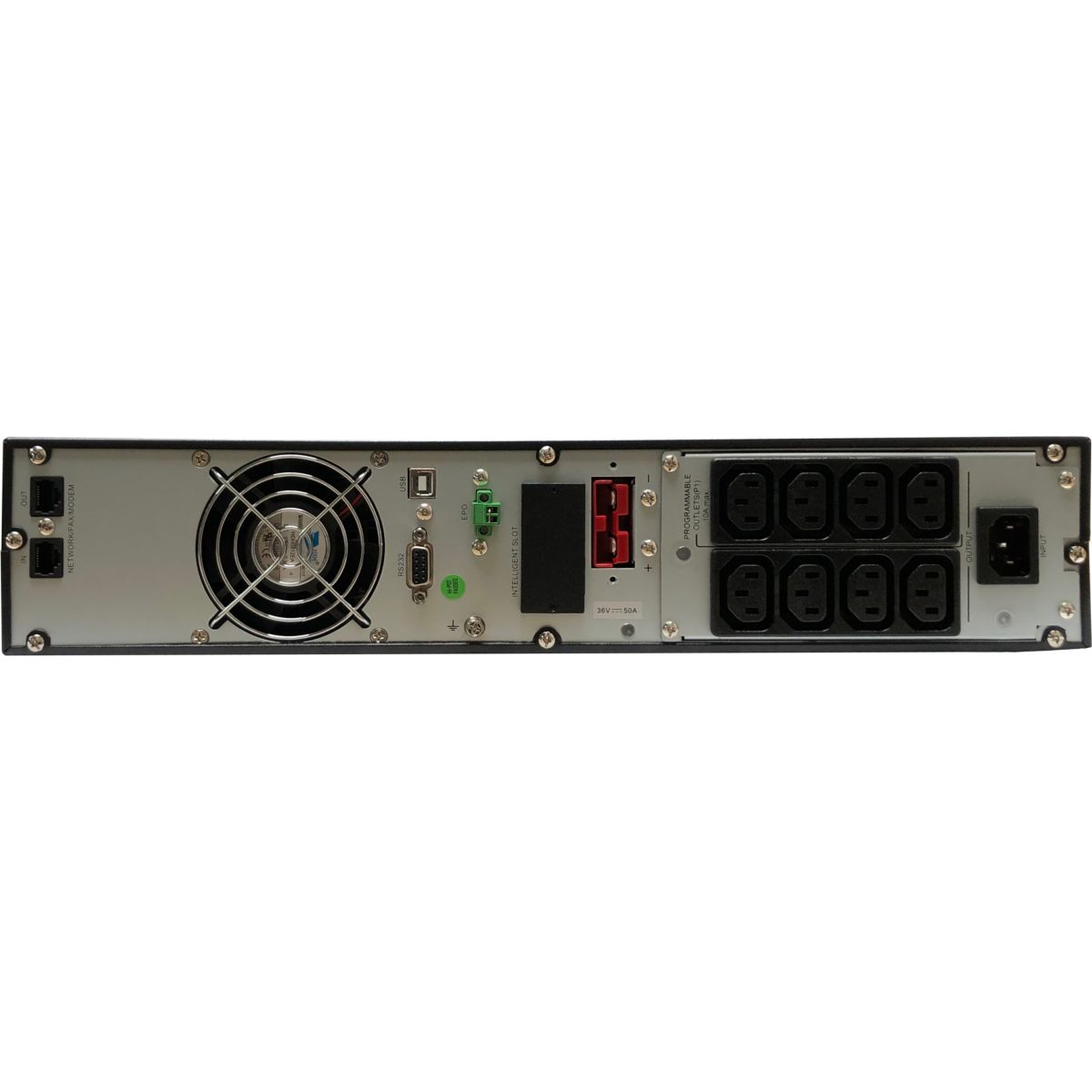

Input ConnectionIEC C14
Output Connection8xIEC C13
Warranty2 Years
  • Mains Lead
  • IEC C13/14 Loop Cable
  • ViewPower Software CD
  • USB Lead
  • Rack Ears
  • Vertical Support Brackets

brochure
